Archled Panel is an ultra-slim Panel with high efficacy in the market. It provide a bright evenly distributed illumination as well as great energy savings and reduced maintenance compared to traditional ceiling light fittings. Panel lights are often used in offices to increase lighting levels to give a softer and even light. LED panels are an ideal replacement for traditional fluorescent tubes in workplaces. It offers nine wattage options with square and round shape for recessed mounting on the ceiling.
SPECIFICATIONS
Product: Recessed Anti-glare LED Panel
Category: Commercial Lights
Lighting Classification: LED Panel
Wattage: 3W/4W/6W/9W/12W/15W/18W/24W
Input Voltage: AC175-265V
Materials: Aluminum
Color: Warm White, Cool White, Daylight
CCT(K): 3500K/4000K/6500K
Lumens: 100-120LM/W

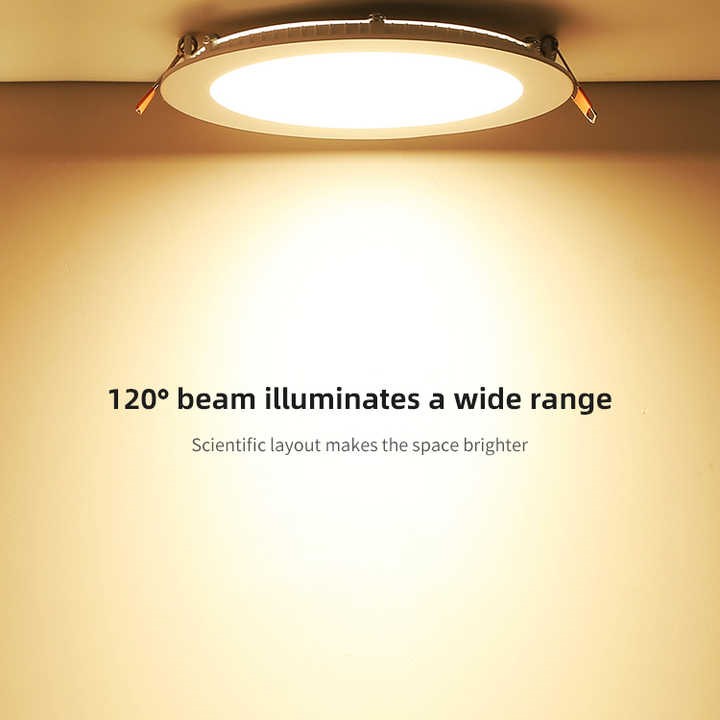

Beam Angle: 120°
CRI: >70
IP Rating: IP20
LED Brand: Osram/Sanan
Lifespan: 50,000hours
Warranty: 3 Years Warranty
Installation Methods: Recessed
| Model | Wattage | Dimension | Cut-Out |
| PL-0203 | 3W | D85mm*H10mm | D75mm |
| PL-0204 | 4W | D105mm*H10mm | D95mm |
| PL-0206 | 6W | D120mm*H10mm | D105mm |
| PL-0209 | 9W | D150mm*H10mm | D135mm |
| PL-0212 | 12W | D170mm*H10mm | D155mm |
| PL-0215 | 15W | D190mm*H10mm | D175-180mm |
| PL-0218 | 18W | D220mm*H10mm | D205mm |
| PL-0224 | 24W | D300mm*H10mm | D275mm |
FEATURES & BENEFITS
- Novel straight face luminescence. Face to face luminescence,uniform luminescence,can be brighter and refuse to be dim.

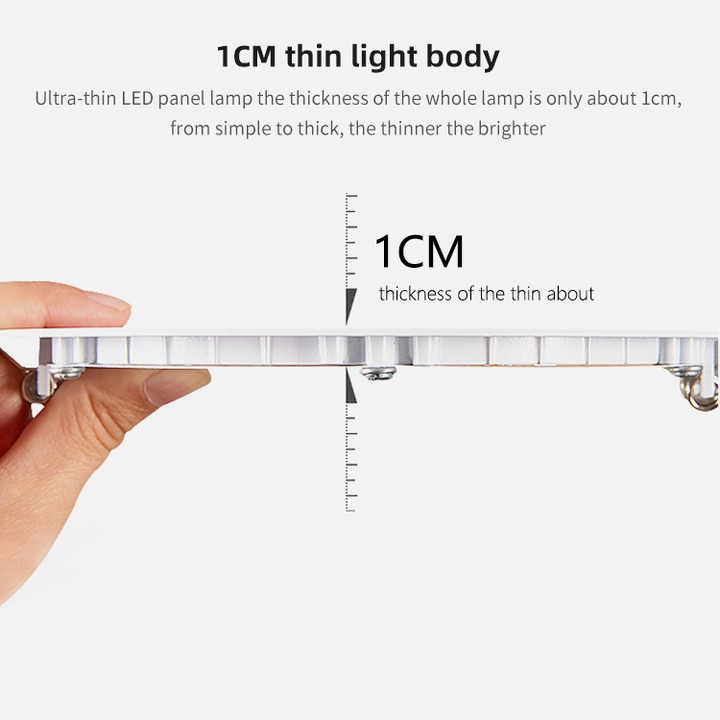

- Ultra thin lamp body,easy to install.
- High efficiency lamp bead. The LED chip adopts lens protection, which has brighter light,high light efficiency, soft and non-dazzling, small light attenuation and long service life.
- Intelligent constant current driver, with constant current and voltage regulation, good heat dissipation, integrated design,not easy to damage and convenient installation.
- Integrated stamping lamp body. Fully sealed design, mosquitoes have nowhere to enter,truly waterproof, steam and oil resistant, avoid short circuit or dark spots on the lamp body,and have a longer service life.

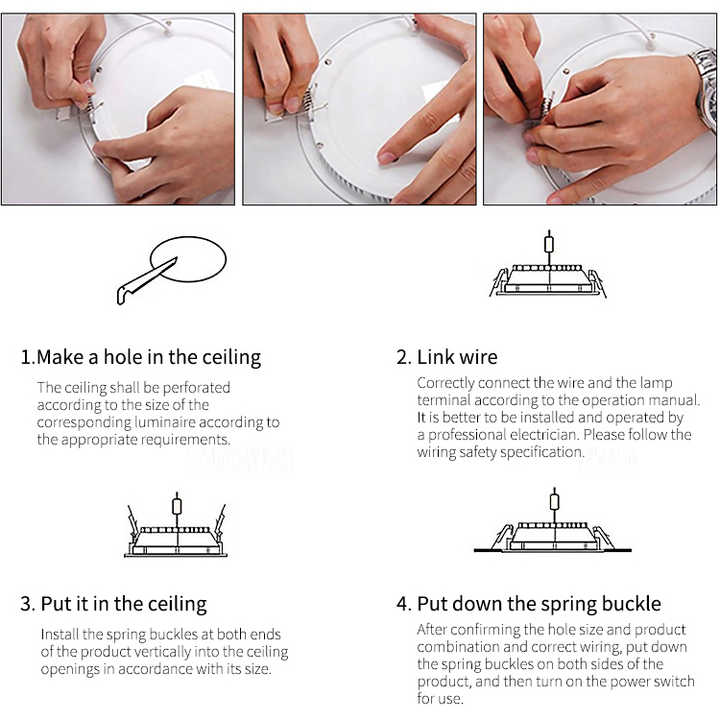

INSTALLATION
APPLICATIONS

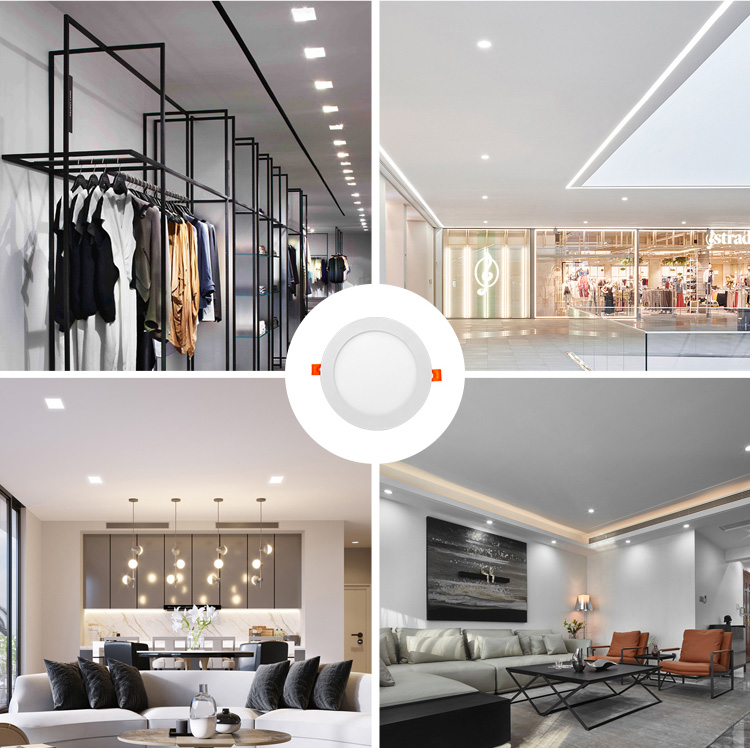

Suitable for general lighting in the living room, Shop & Shopping Mall, museums, etc
