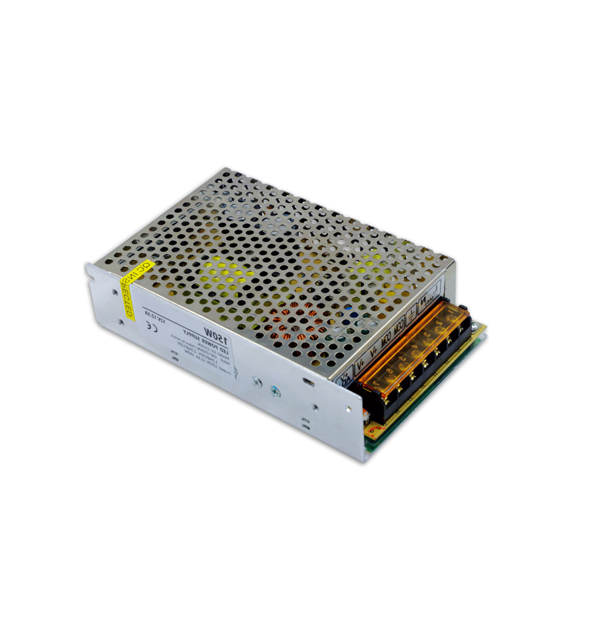

Power Supply Indoor 24V 150W

SPECIFICATIONS

Item: Power Supply Indoor 24V 150W

Model Number: JLV-24150K2

Type: AC/DC Power supply

Output Power: 150W

Input Voltage: AC170V~250V

Output Voltage: DC24V 6.25A

Dimension: 159*98*38mm

Weight: 0.5KG/PCS

Package: 40PCS/Carton

Certificated: CE/RoHS

Application: LED lighting

Protection: Over-heat, over-load, short-circuit & open-circuit

Waterproof Grade: IP20

Work temp: -60℃ ~ + 40℃

Warranty: Three years

FEATURES & BENEFITS

- Ultra-low temperature cold, - 60 degrees Celsius can work stably for a long time , military grade design, selection of materials, technology to build a cold-resistant boutique power.

- Aluminum alloy shell, super hard and not easy to deformation, the surface does not rust, will not be aging and rupture because of prolonged exposure to the wind and sun.

- High power, sufficient power, and stable. We use pure copper transformers, new components, true nominal parameters specifications. Such led power supply is with enough power, high efficiency, less heat, and has life assurance.

- Ten full process quality control, product quality continuous improvement, to ensure it is safe enough.The circuit of the power supply with safety isolation transformer, its input and output low-voltage part is separate. In the production process 100% of each product are high-voltage test, with AC1500V high voltage to test the utility input and output low-voltage part, hardware shell between whether is safety isolation, whether there is a risk of electric leakage and electric shock

- Four levels of production testing, factory pass rate of 99.7% or more, annual rework rate of less than 3/1000.

- Three years free warranty, within three years after the product leaves the factory, the product itself quality problems, for domestic customers to provide free replacement, we are responsible for the return freight. The warranty program for foreign customers will be executed according to the contract.

APPLICATIONS

Archled's LED power supply products are widely used in lighting, energy saving, decoration, advertising and other fields, such as LED building lighting project, urban landscape project, luxury signs and high-end signage projects, LED commercial lighting, municipal energy-saving projects, etc.
