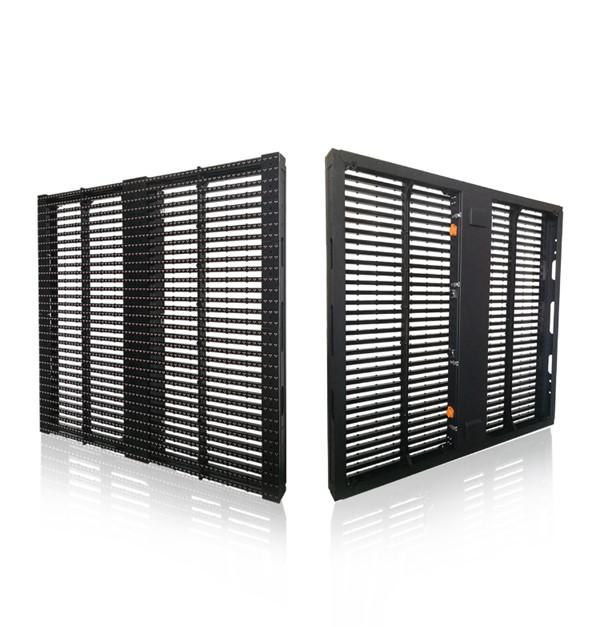

TRANSPARENT LED DISPLAY C Series

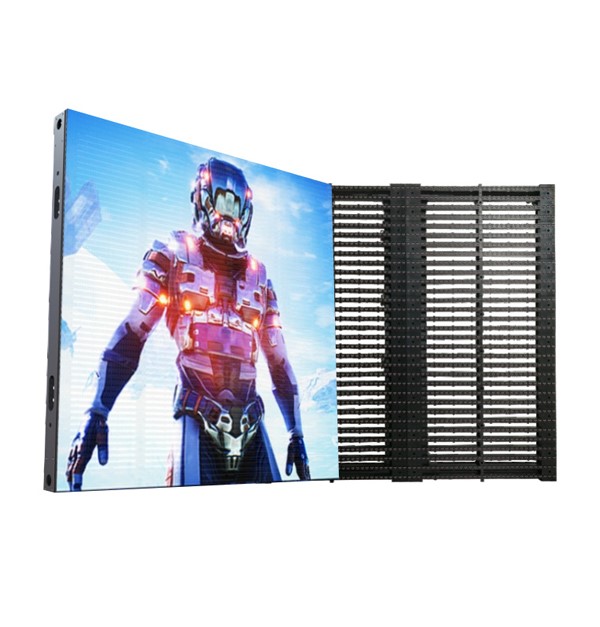

Transparent LED Display is a new application in optimizing the display of advertising messages for businesses. Called transparent led screen because it can display without the black background, which obstructs the view that conventional LED displays have.

Email: info@archled.net

FEATURES & BENEFITS

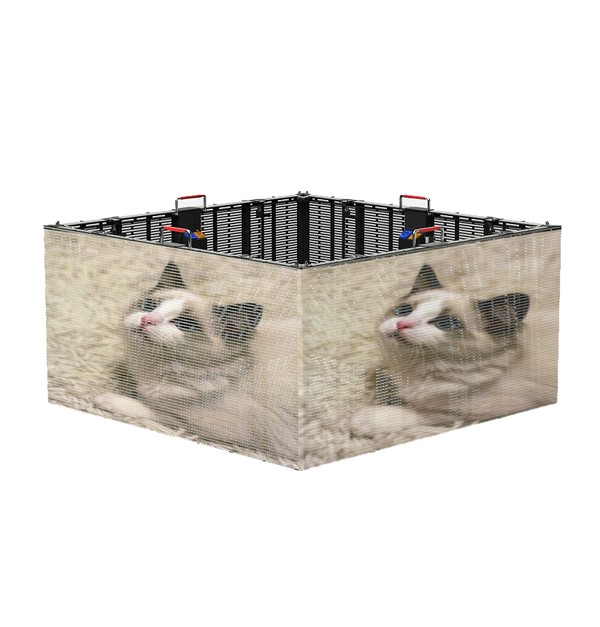

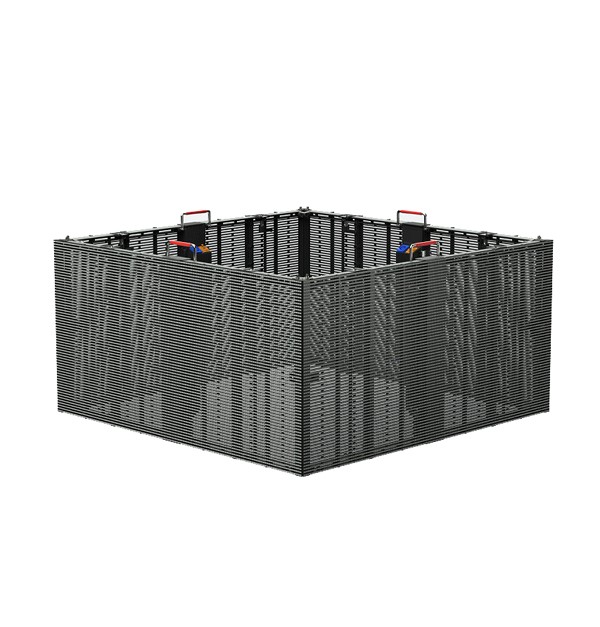

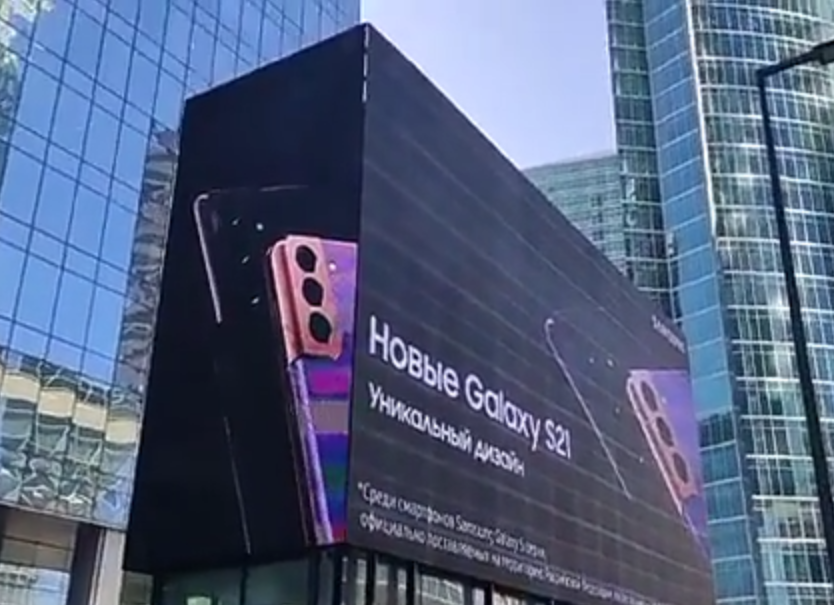

- Right-angled Connection. The edges of each module are designed to be 45 degrees. It is easier to make right-angled connection and realize glasses-free 3D LED display.

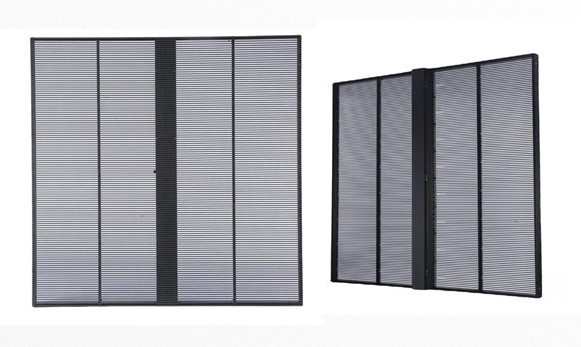

- High Transparency 30%-60%. Building behind the screen have better natural lighting and cabinets are thinner, easy to install.

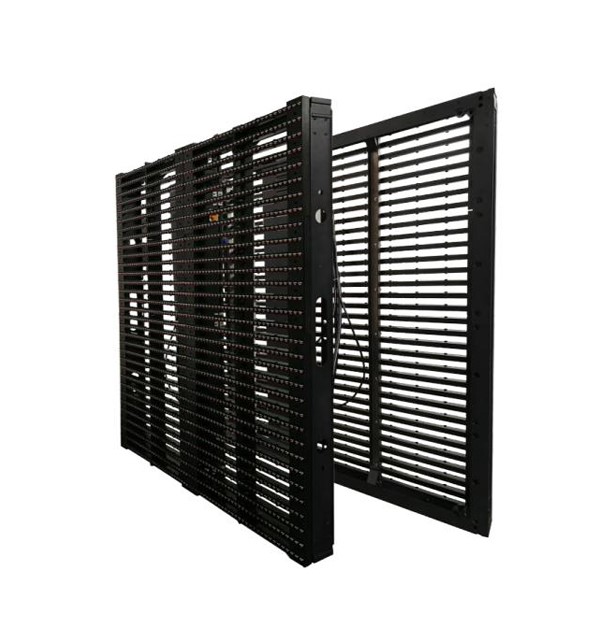

- Full Front Installation& Maintenance. C series can be installed in a variety of outdoor environments. Because it can be either front or rear installed and maintained.

- IP65/IP54 Waterproof. With IP65/IP54 waterproof, C series meet the requirement of outdoor working environment.

- Naked Installation. C series can be installed naked without cover and air conditioner, because of its IP65 waterproof rate and good heat dissipation design, it requires only a simple steel structure for installation.

SPECIFICATIONS

Parameters	C0307	C0510	C0612	C0707	C0715
Pixel Pitch(mm)	3.91x7.81mm[H*V	5.2x10.4mm(H*V)	6.2x12.5mm(H*V)	7.81mm(H*V)	7.81x15.6mm(H*V)
LED Configuration	SMD1921	SMD2727	SMD3535	SMD2727	SMD2727
Module Size(mm)	500*125	500*125	500*125	500*125	500*125
Module Resolution	128*16	96*12	80*10	64*16	64*8
CabinetSize(mm)	1000100075	1000100075	1000100075	1000100075	1000100075
Cabinet Resolution	256*128	192*96	160*80	128*128	128*64
CabinetWeight(kg	18	18	18	18	18
Transparency Rate	30%	50%	35%	30%	60%
Brightness(cd/m)	5500	6000	6000	6000	6000
Max Power Consumption	80w/m²	800w/m²	800w/m²	800w/m²	800w/m²
AvgPower Consumption	266w/m²	266w/m²	266w/m²	266w/m²	266w/m²
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
IPRating(Front/Rear)	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54
Installation Type	Front/Back	Front/Back	Front/Back	Front/Back	Front/Back
Maintenance Type	Front/Back	Front/Back	Front/Back	Front/Back	Front/Back

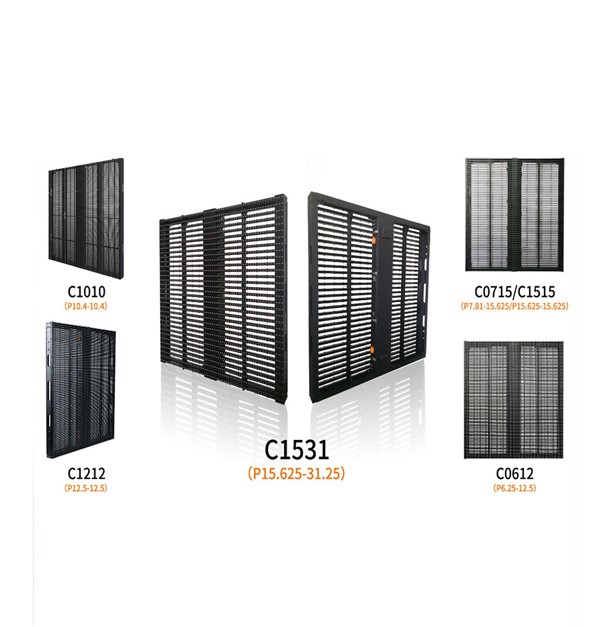

Parameters	C1010	C1212	C1515	C1531
Pixel Pitch(mm)	10x10mm(H*V)	12.5x12.5mm(H'V)	15.6x15.6mm(H^V)	15.6x31.25mm(H'V)
LED Configuration	SMD2727	SMD3535	SMD2727	DIP346
Module Size(mm)	500*125	500*125	500*125	500*250
Module Resolution	48*12	40*10	32*8	32*8
Cabinet Size(mm)	1000100075	1000100075	1000100075	1000100075
Cabinet Resolution	96*96	80*80	64*64	64*32
Cabinet Weight(kg)	18	18	18	20
Transparency Rate	30%	35%	60%	50%
Brightness(cd/m)	6000	6600	5500	8000-10000
MaxPower Consumption	800w/m²	800w/m²	800w/m²	360w/m²
Avg Power Consumption	266w/m²	266w/m²	266w/m²	100w/m²
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz
IP Rating(Front/Rear)	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54
Installation Type	Front/Back	Front/Back	Front/Back	Front/Back
Maintenance Type	Front/Back	Front/Back	Front/Back	Front/Back
