Supported Chips
lpd6803, lpd8806, lpd6812, lpd6813, lpd1882, lpd1889, lpd1883, lpd1886, dmx512, hdmx, apa102, my9221, p9813, ld1510, ld1512, ld1530, ld1532, ucs6909, ucs6912, ucs1903, ucs1909, ucs1912, ws2801, ws2803, ws2811, ws2812, dz2809, sm16716, tls3001, tls3002, tm1812, tm1809, tm1804, tm1803, tm1914, tm1926, tm1829, tm1906, INK1003, bs0825, bs0815, bs0901, ly6620, dm412, dm413, dm114, dm115, dm13c, dm134, dm135, dm136, 74hc595, 6b595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV and so on.
Performance and Features
- Four output ports to control up to 4096 pixel points. The maximum number of control points per port is 1024 points.
- Support Art-Net protocol, can be used with MADRIX software.
- Can address DMX chips of Tianwei and Lianxinke.
- Can be set as repeater and amplifier by "LEDStudio" software.

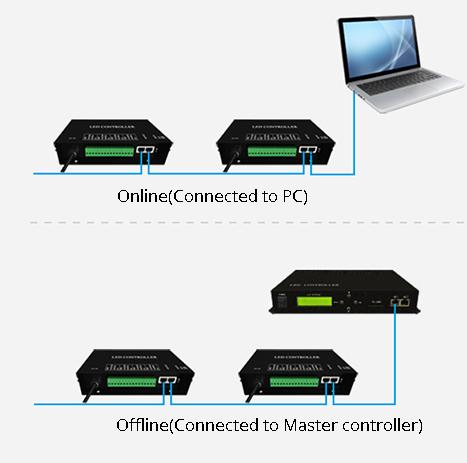

- Can be connected or disconnected, can be directly connected to the computer network card, can also be connected to the offline and on-line master control.
- The use of flexible, sub-control can be arbitrarily interchanged, the adaptability of the lighting project.
- The transmission distance is far, the transmission signal using the standard Ethernet protocol, the nominal distance of 100 metres. Sub-control can be used as a relay, can be directly through the photoelectric conversion module, so that the transmission distance reaches more than 25 kilometres.
