Performance and Features
- Each control 150,000 points, multiple master control can be synchronised by AC power supply to achieve synchronous control of hundreds of thousands of points to millions of points.

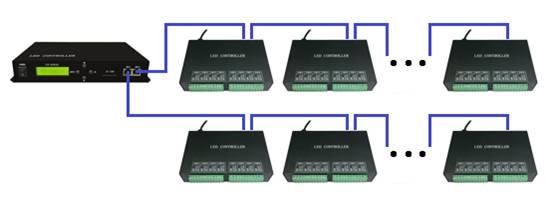

- Two output network port, connect up to 255 sub-control. H801RA maximum control 3412 points, maximum output four ports; H802RA maximum control 4096 points, maximum output four ports; H801RC maximum control 8192 points, maximum output eight ports.
- SD card support FAT32, FAT16 format, the maximum capacity of 64G bytes and above, allowing up to 64 DAT files.
- Chinese and English LCD display, long press MODE key to switch.
- Encryption function by limiting the number of power-ups, encryption and decryption is set in the DAT file.

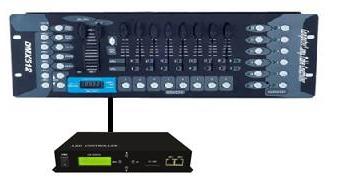

- Can be connected to the DMX console, but also through the H802RA to DMX driver chip address.
- Support single file playback and all files loop playback, playback speed adjustable range is 1-100 frames per second, brightness adjustable range is 0-16.

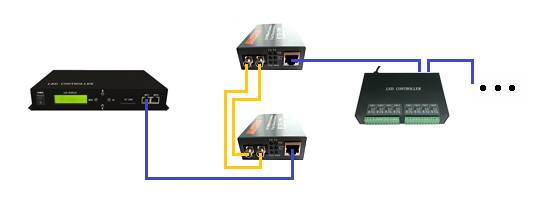

- Transmission signal adopts standard Ethernet protocol, the nominal distance is 100 metres. Through the photoelectric converter, the transmission distance can reach more than 25 kilometres.
- Support router star structure control.
- Electrical isolation anti-interference ability, the main control and sub-control, sub-control and sub-control isolation, anti-static and lightning.
- Flexible engineering configuration, each sub-control can control different lamps and lanterns.
