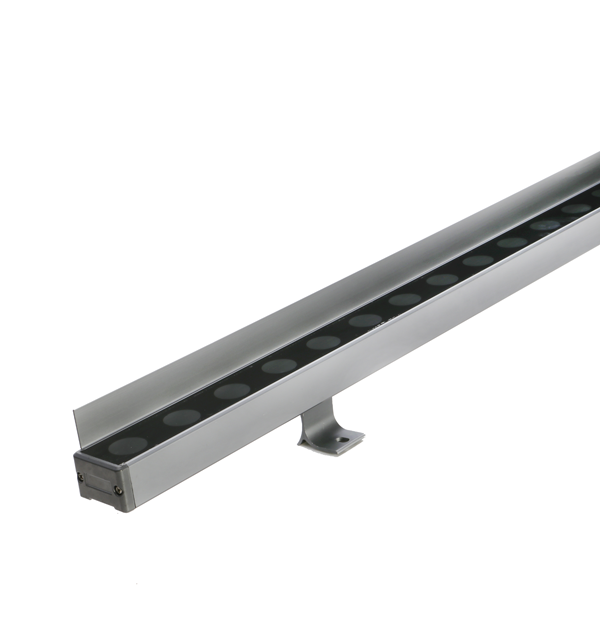

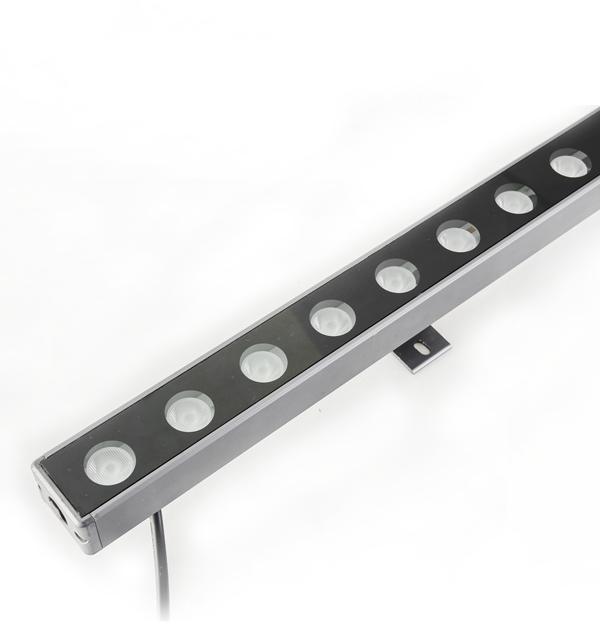

Addressable IP67 44W DMX512 Wall Washer Light RGB RGBW 40x28mm

Addressable 44W DMX512 Wall Washer Light RGB 40x28mm is a fully water resistant and robust bright LED fixture, perfect for both interior and exterior use. Available in range of single colors and DMX controllable RGB. Mount the LED wall washer unit to ceilings, floors and walls with the adjustable bracket for different lighting effects. In addition using corrosion resistant extruded aluminium to make the housing extremely robust and hard wearing. Ideally suited to architectural lighting, landscape lighting, garden lighting, facade lighting, theatres, bridges, hotels, shopping centres, and customized projects.

Email: info@archled.net

Product Features

- Made of imported aluminum die-casting, convection cooling design, strong heat dissipation ability, effectively solve the problem of heat

  dissipation of lamps and lanterns

- Adopt imported OSRAM high brightness LED chip, Japan Mitsubishi PMMA Lens material, multiple angles can be selected

- Adjustable bracket, equipped with sliding rails, can be freely adjusted, easy to operate, making installation easier and more convenient

- Adopting breathing valve, waterproof and breathable, balancing internal and external stress, eliminating water mist for better protection.

- Solid copper pins for male and female connectors, integrated anti-dislodgement rubber tip, easy to install, waterproof and durable.

- All use hexagonal screws, 304 stainless steel material, better rust and water resistance.

- Customized length or watts are available according to your needs.






Specifications

Model
WW-W4028
Input VoltageDC24V

Dimension

L1000mm*W40mm*H28mm
Rated Power44Watts
Housing Material
Die-Cast Aluminum+Tempered Glass
Control ModeDMX512
Housing Color

Aluminum/Dark gray/

Customized

Address SettingManual
Color
RGB/RGBW
Pixels Per Meter1Pixel/4Pixels
Lighting Source
24PCS 3535 LEDIP RatingIP67
Beam Angle
15°/30°/45°/60°/20°*40°/30°*60°Working Temperature-20~50℃
Chip Brand
EPISTAR/OSRAM/CREEWarrantyThree Years
Source Life
50,000HRemarks

Length/Power can be

customized

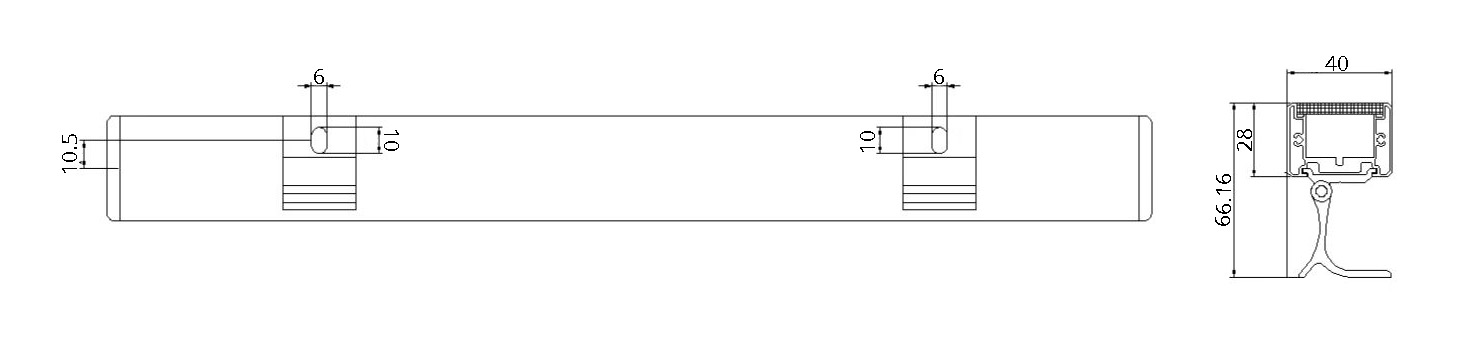

Dimension(mm)

 44W dimension.jpg

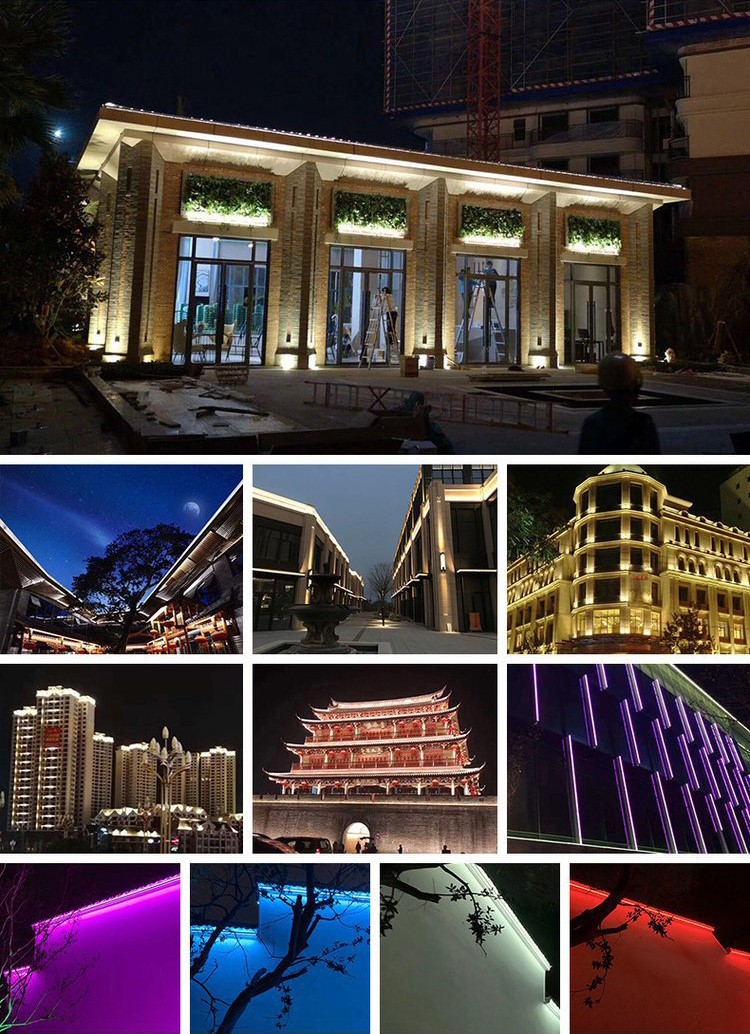

Applications
