DMX LED Module Pixel RGB IP67

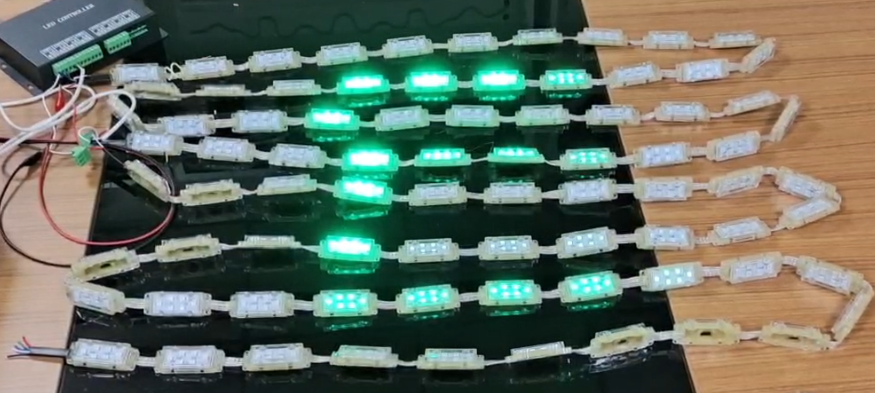

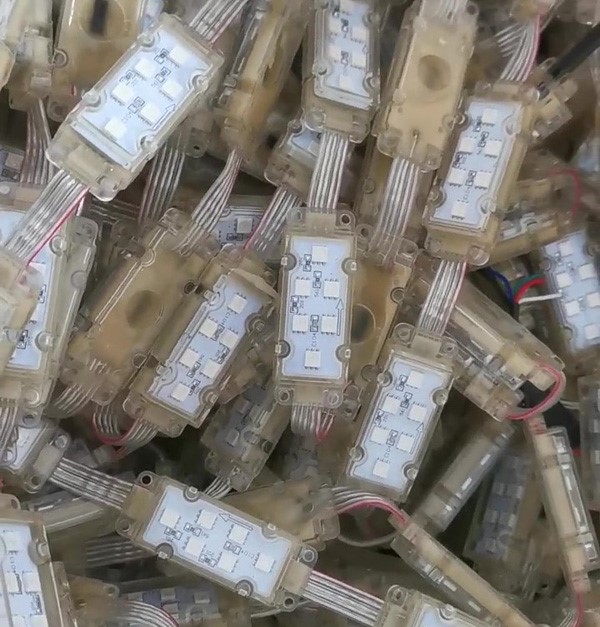

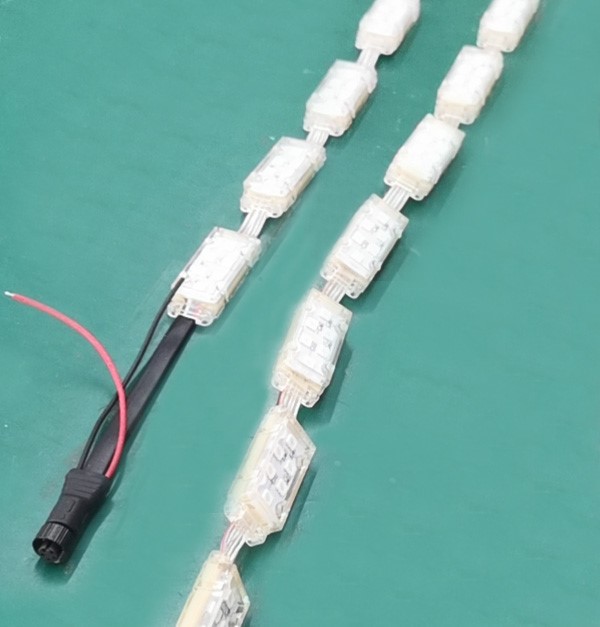

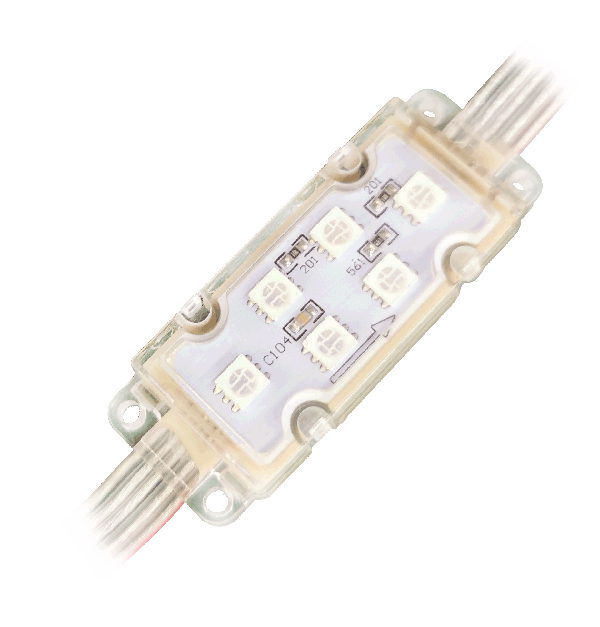

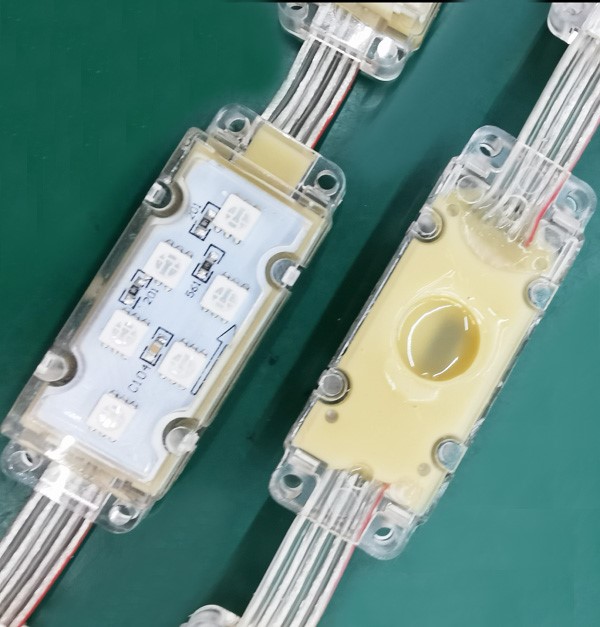

DMX LED Module Pixel RGB IP67 is made by ABS plastic shell, PC LENs and PCB and red, yellow, green, blue and white 5PIN line (high temperature resistant, cold resistant, UV resistant), including one DMX512 IC and 6pcs 5050RGB SMDLEDs, this product has high brightness, low power consumption, long life, low voltage, small attenuation, rich colors, etc. Products can achieve effect of flowing water, chase, scanning, etc. Depending on the installation, but it was a composition change different color characters, design, etc. Various kinds of dynamic effect.
Widely used in Amusement parks and theme parks, hotel, KTV entertainment and other backlight or AD decorative lighting, etc.

Email: info@archled.net

Product Features

- This product adopts ultra-high brightness led light source, which is effective in waterproof, anti-UV and anti vulcanization.

- The unique design of the product, a variety of intallation methods, can be punched installation, wire lifting, screw installation, glue

   installation.

- The shell is made of high- strength die-casting base and transparent PC cover. It has superior toughness, better heat dissipation

   performance and fire rating of V-0. It is safer and more reliable.

- The potting glue uses custom PU glue, adding heat-dissipating powder to reduce heat loss and effectively reduce LED light decay

   speed.

- The product adopts the international common standard MDX512 signal, the signal transmission distance is long, and the S-A anti-

   interference technology can grcatly reduce and filter out interference and conduction interference.


Specifications

ModelPL-A1Power 1.5W
LED Type5050 SMDShell MaterialPC, Anti-UV, Anti-Shock

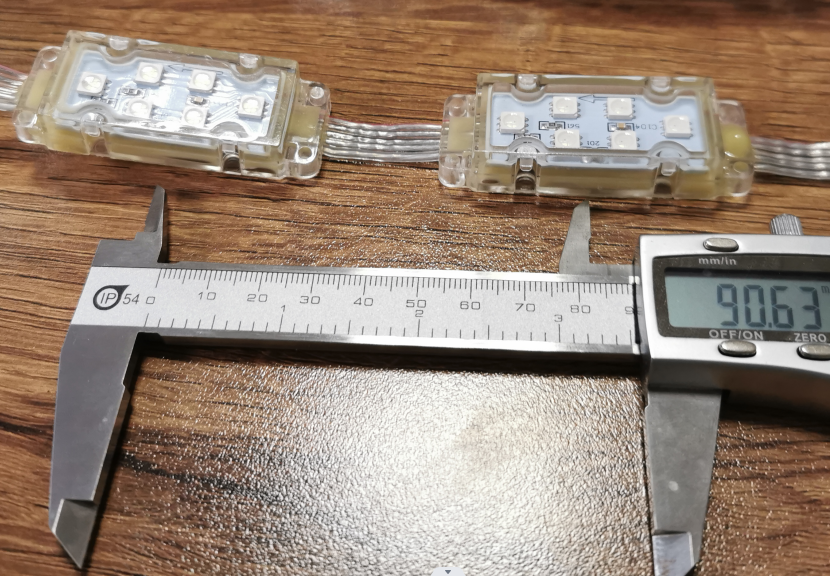

LED ChipSanan/EpistarDimensionL64*W25*H12mm
Viewing Angle120°ColorRGB
ColorRGBDiffuserClear
LED Qty6PCSPixels Per Meter1Pixel
Lifespan50,000HControl ModeDMX512
IP RatingIP67DMX Channels3
Working Temperature

-40℃--50℃

Address SettingManual
Working VoltageDC24VWarrantyThree Years

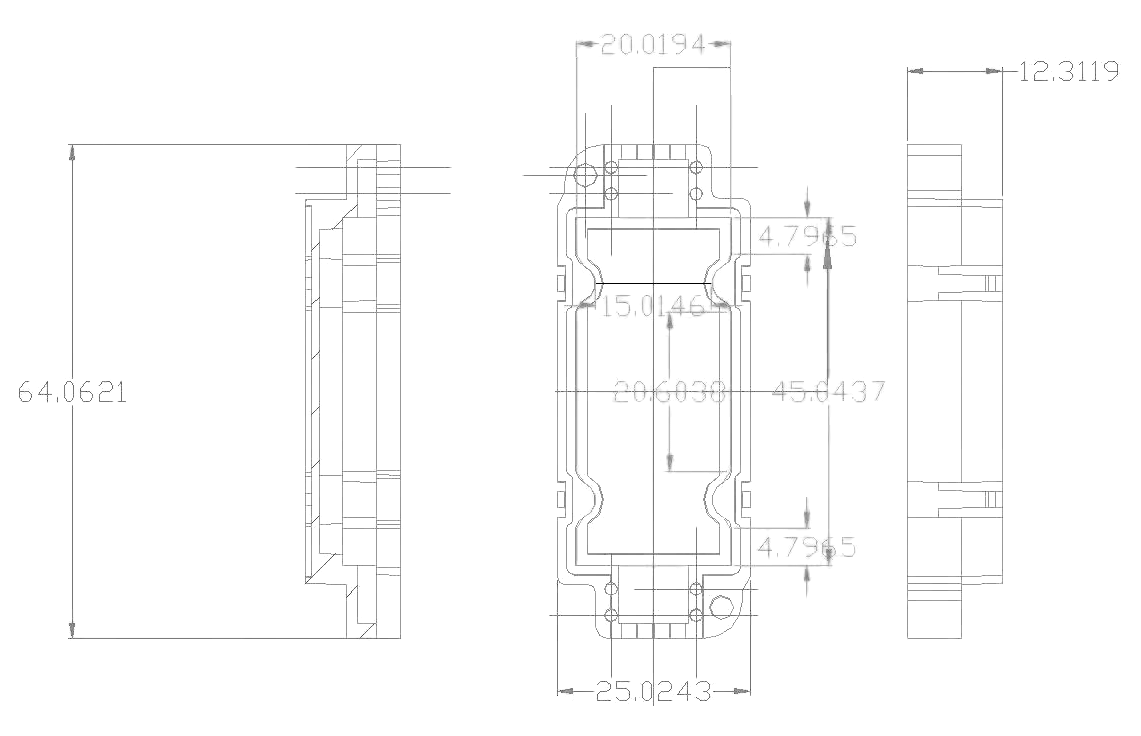

Dimension(mm)





Connection Diagram




















Applications
