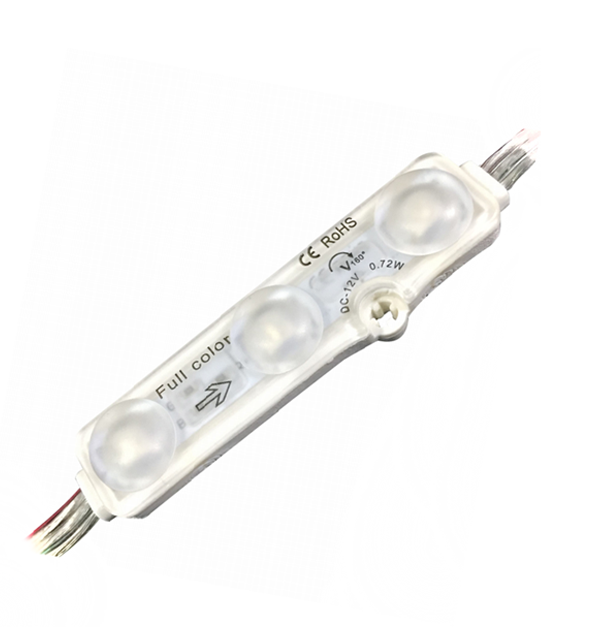

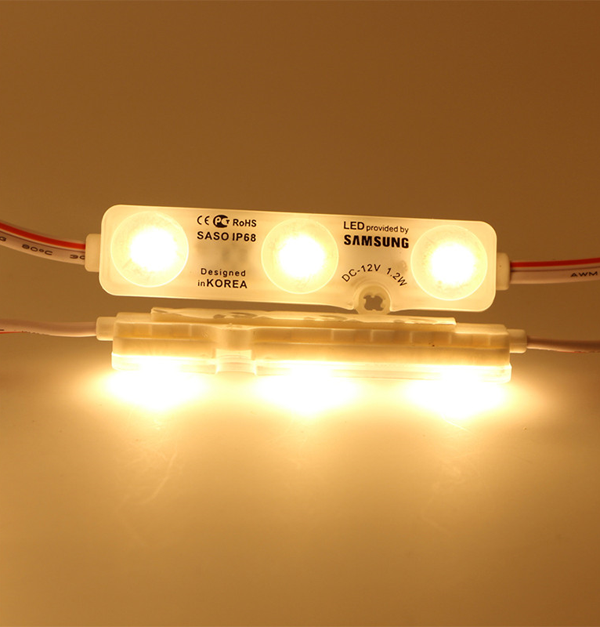

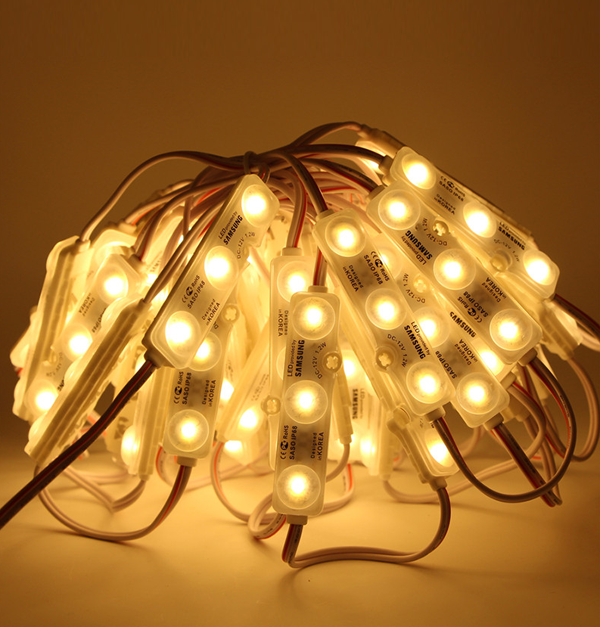

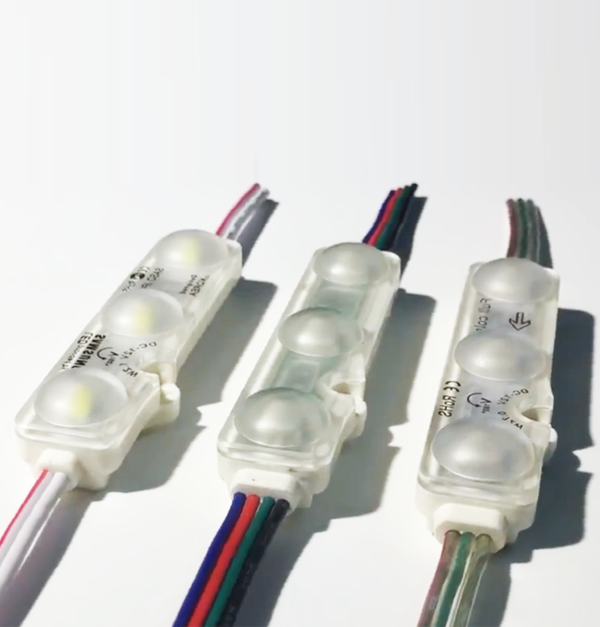

SMD5630 Injection LED Module IP67 is With a ABS plastic injection technique for outer cover,this unique structure grants a better cooling effect. And it outputs a high lumen value 60-70lm/LED. It is applicable for 10-20cm glowing character or any place used for backlight, assist and decorative lighting,advertisement board,light box or local lighting, etc.
Product Features
- Adopt TOP 5630 SMD LED,no light spot,with a low lumen recession and good consistency.
- 5630 modules with a low power consumption and high lumen value 60-70lm/LED,a long life-span,maintenance-free.
- With a ABS plastic injection technique for outer cover,this unique structure grants a better cooling effect.
- IP Rate:IP67,waterproof.
- DC 12V low voltage inputreliable and safe.
- Adopt series-parallel connection circuit,20/40pcs per string
- Viewing angle: 160°.
- Three years warranty.
Specifications
| Model | 853A | Power | 1.2W |
| LED Type | 5630 SMD | Shell Material | White ABS |
| LED Chip | Sanan/Samsung | Dimension | L66*W15*H7.5mm |
| Viewing Angle | 160° | Available Color | W/WW/CW |
| Lumininous Flux | 90-120lm | Standard Length in Serial Connection | 50PCS |
| LED Qty | 3PCS | Max. Length in Serial Connection | 100PCS |
| Lifespan | 50,000H | Working Temperature | -40℃-60℃- |
| Working Voltage | DC12V | IP R | IP67-68 |

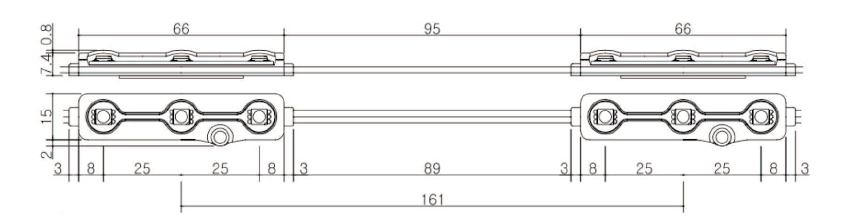

Dimension(mm)

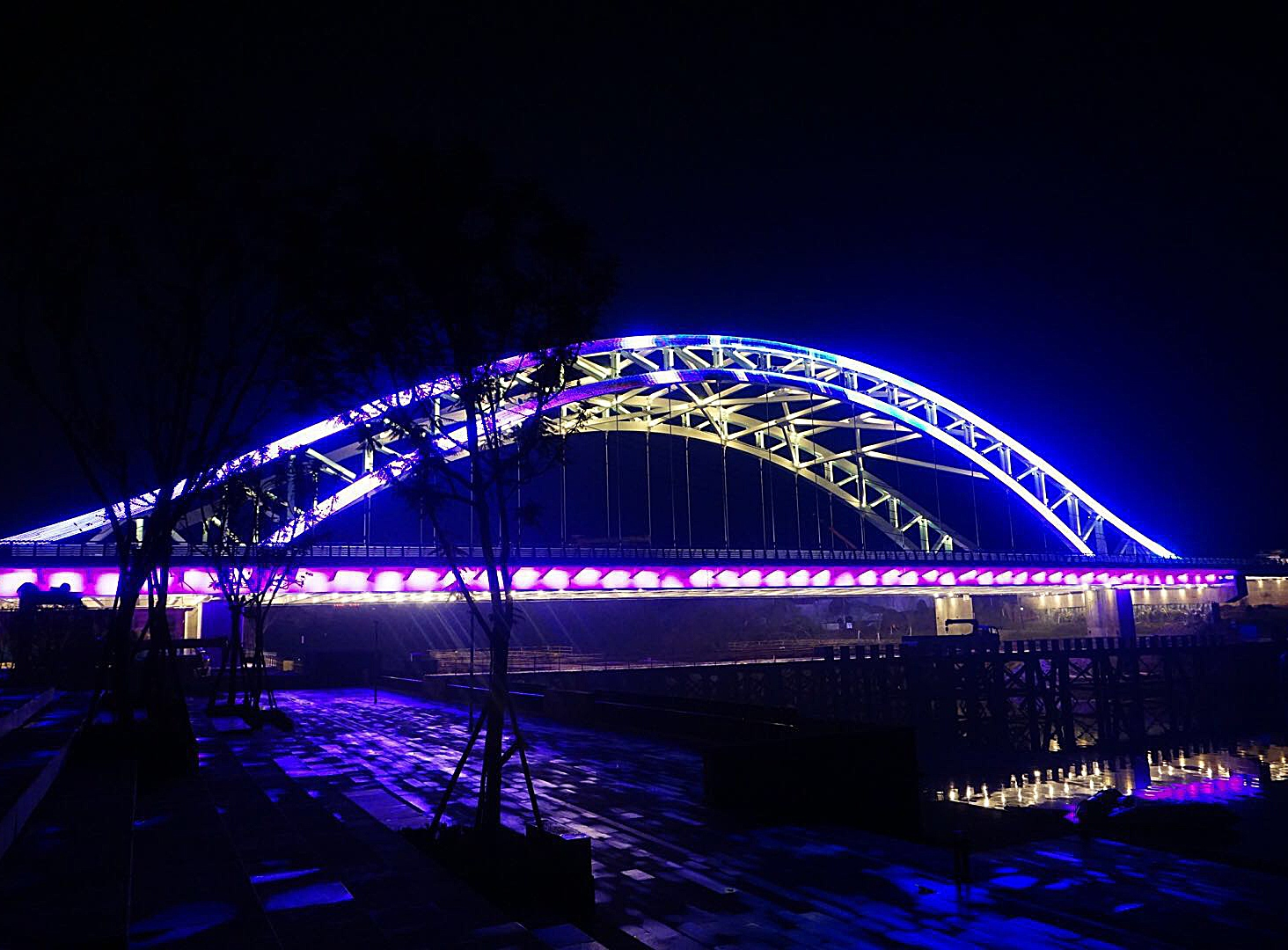

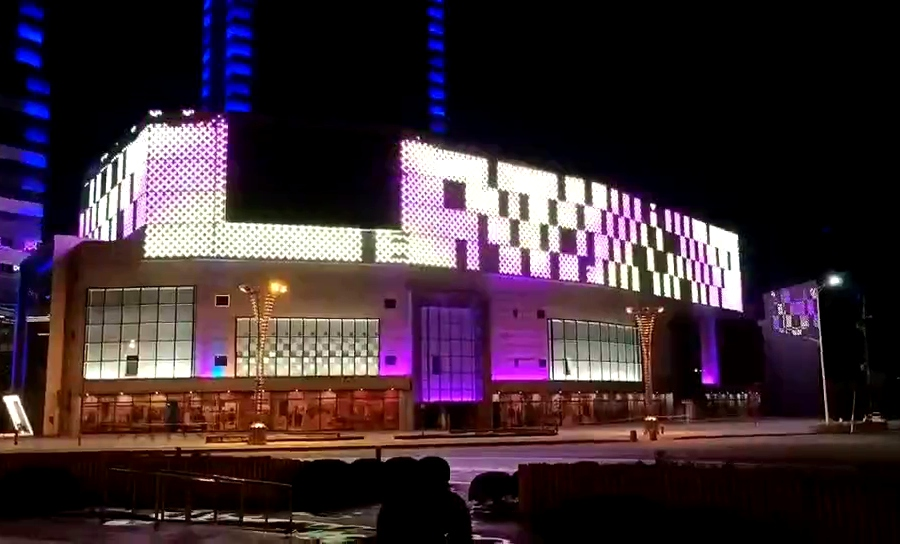

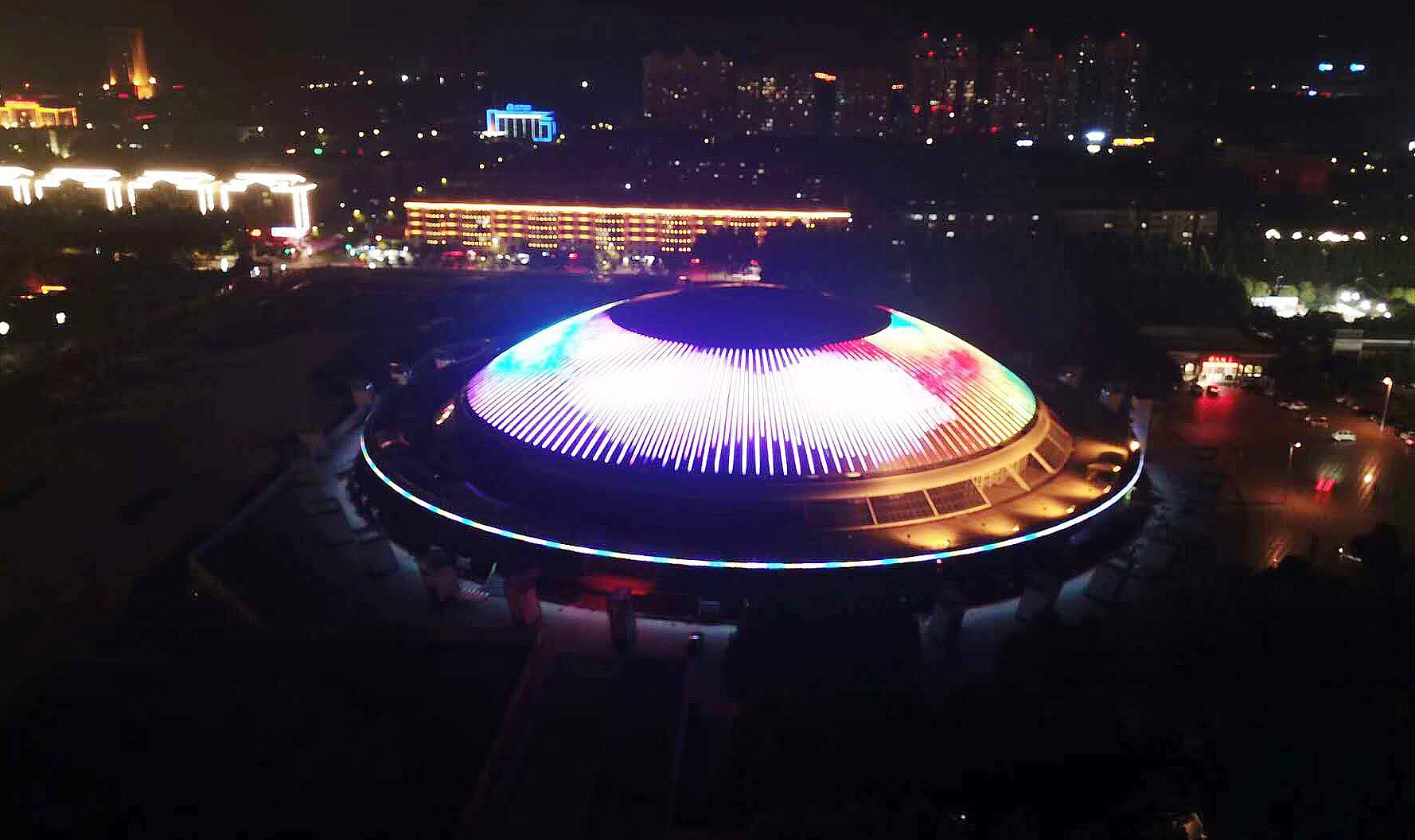

Applications
